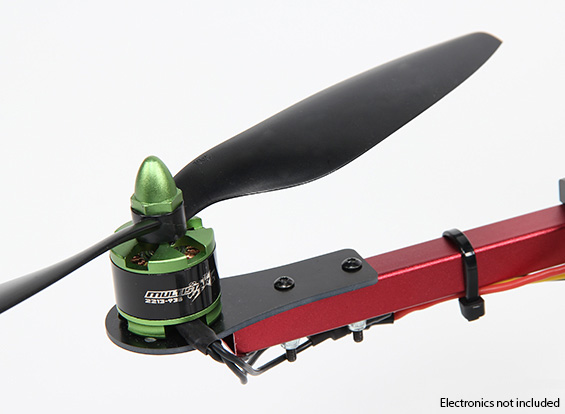

The motor mounts that come with this frame can be upgraded with any number of quality motor mounts. We are in the process of designing and producing our own 10mm square motor mounts.
The

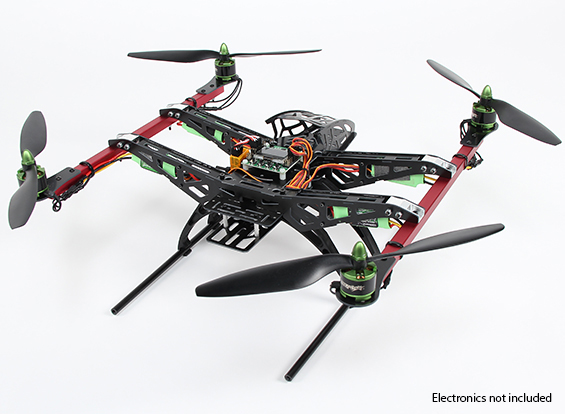

Hercules was designed with adaptability and layout in mind. First, the

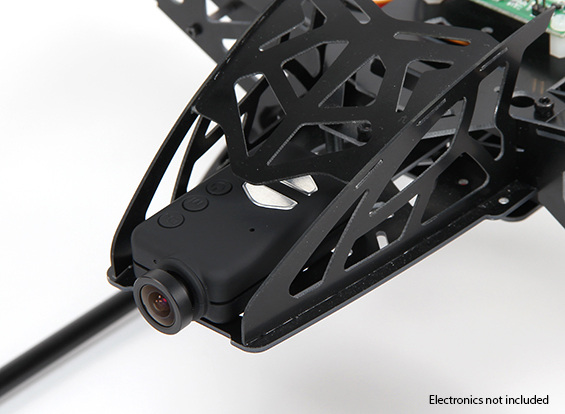

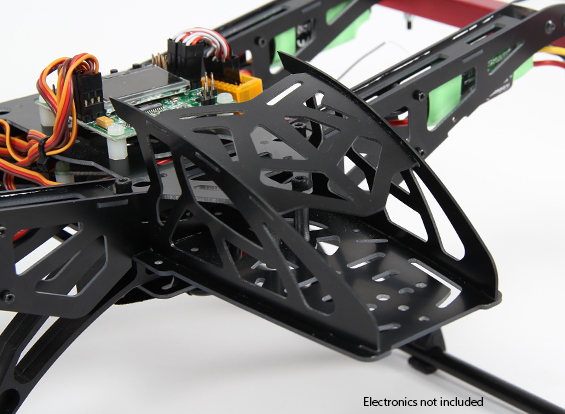

Hercules has a forward camera and integrated gimbal support mount.
Next, it has a power distribution board and flight controller mount for a

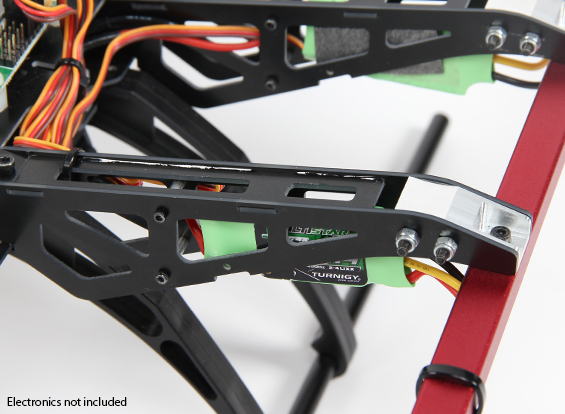

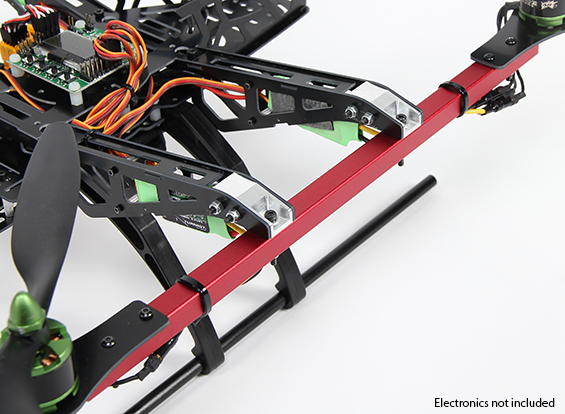

clean and tidy layout. The dual boom arms are designed to house the ESCs
vertically and support the red anodized and satin aluminum motor arms.

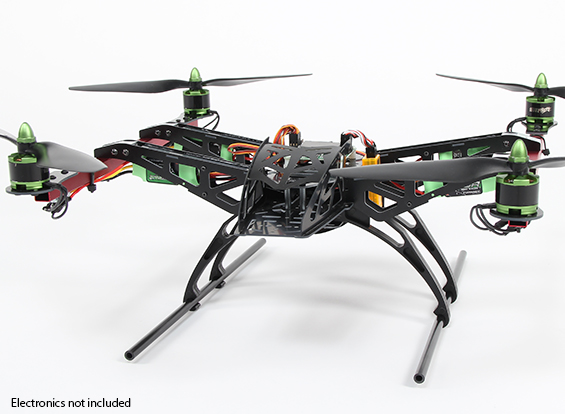

The wide-stance landing gear adds to the rugged looks and versatility,
as well as having an optional 60mm hook and rod mounting points. The
lower battery mount allows for a wide range of CG locations and the
overall looks make this very easy to orient visually in the air. The
Hercules is a 500mm motor-to-motor square layout, making the flight
characteristics and tuning a breeze.
The Hercules is sized just right for fun and
utilitarian uses. The rugged mythological good looks make this a
champion among quadcopters.
Features:
• Unique front mounting providing directional orientation and style
• Optional 60mm hook and rod mounting

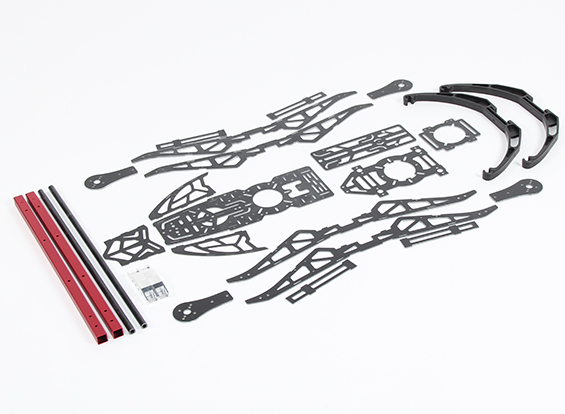

• Composite and CNC construction
• Integrated ESC mounting
• Lightweight
• Square motor layout for great flight characteristics
• Integrated flight controller and power distribution mounting
Specs:
Wheelbase or motor to motor diagonal size: 500mm
Weight: 460g
Landing gear height to bottom of frame: 75mm
Flight controller and power distribution mounting: 45mm Square
Required:
Motor: 22~28 Class of motor (recommendation)
ESC: 4 x 20~30A (recommendation)
Propeller: 4 x 8~12in (recommendation)
Battery: 2200~5000mah 3~4s 11.1~14.4V (recommendation)
MultiRotor flight controller
5ch radio control system |
