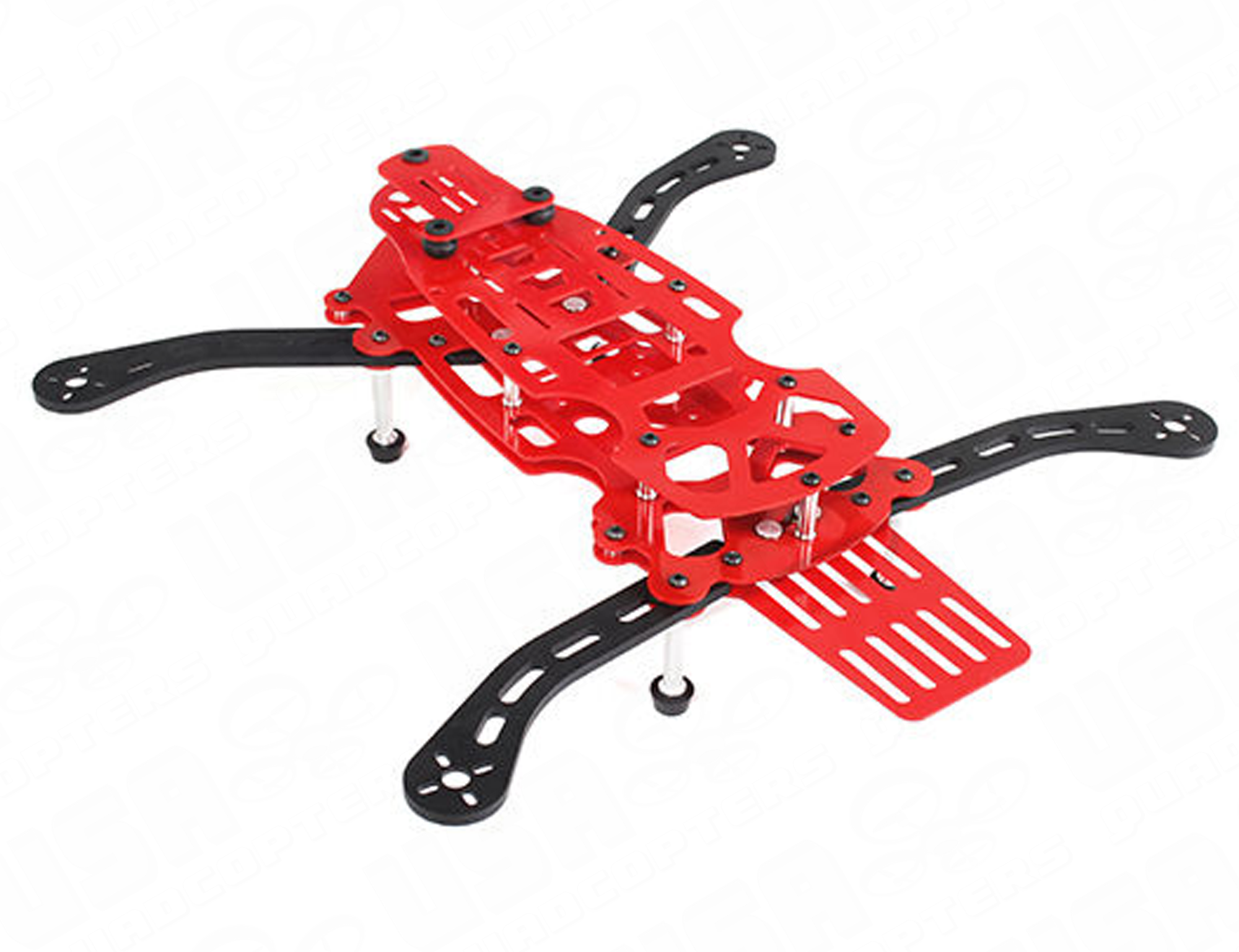

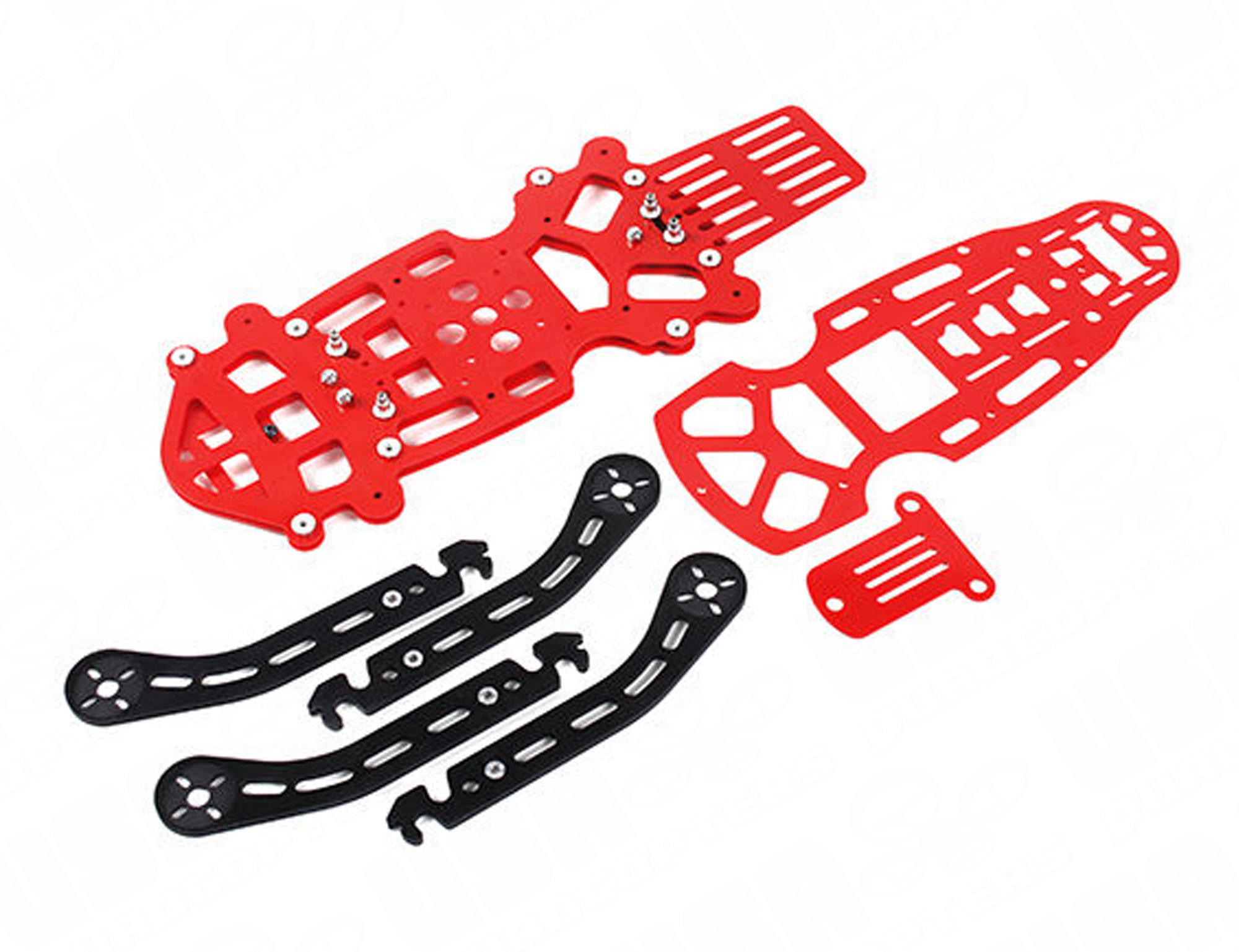

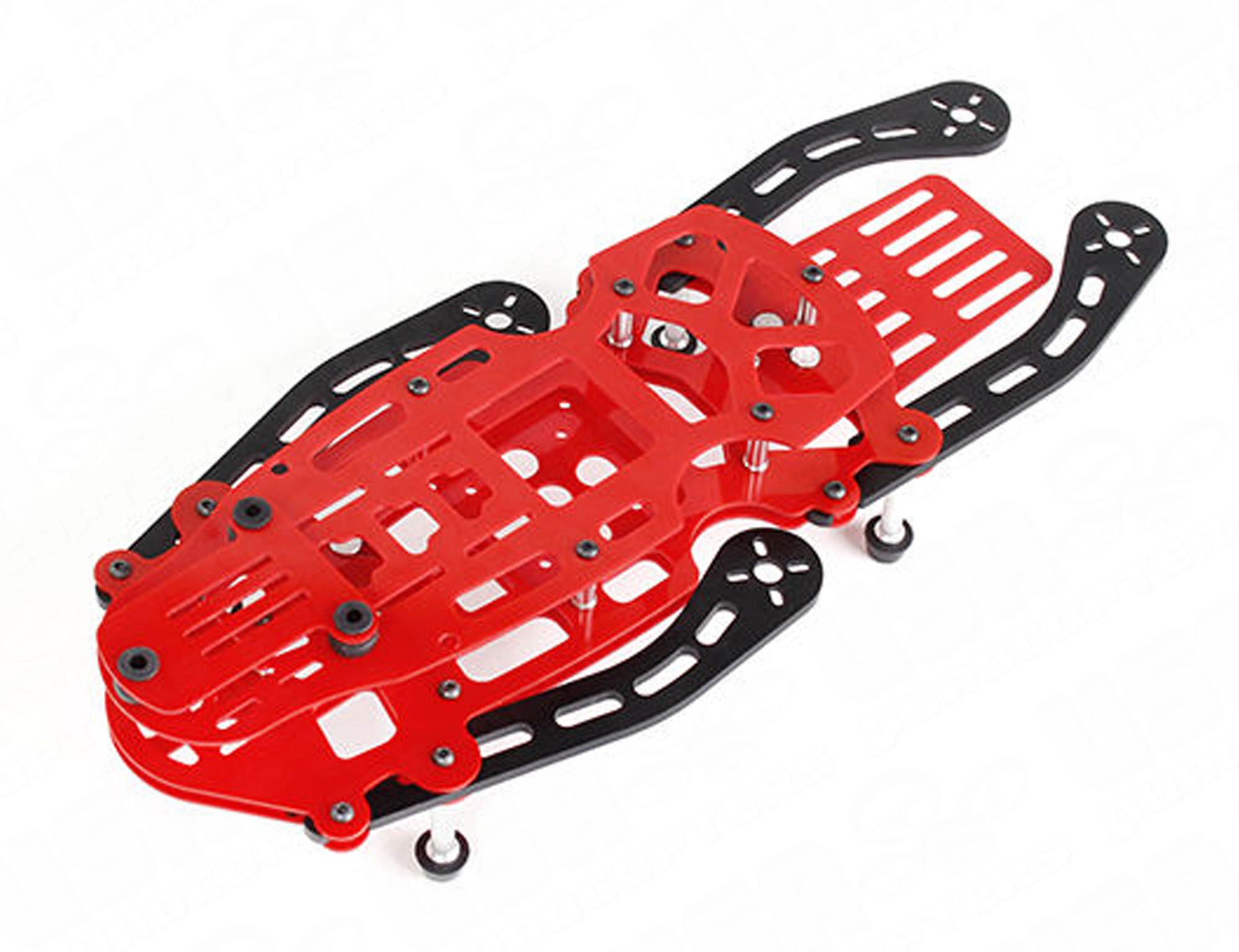

Scarab 360mm Folding FPV Quadcopter Frame

Designed with FPV and sport flying in mind, the Scarab 360 has a unique forward facing vibration isolated camera mount in line with the mainframe. This mount supports small action cams such as the GoPro. The frame has clearance for in frame ESC mounting between the two lower frame stacks and has 45 & 30.5mm FC mounting options. There are ample mounting provisions for all of your radio and FPV gear as well as an integrated rear battery mounting slot. Some slight modifications to the frame and motor arms were made to increase strength, reduce weight and increase compatibility with equipment. One of the more notable changes being the inclusion of lightweight carbon composite arms.

The Scarab 360 offers a fresh design with great looks and unique options not found in this class of multirotor.

Features:
• Carbon Composite arms
• FR4 frame construction

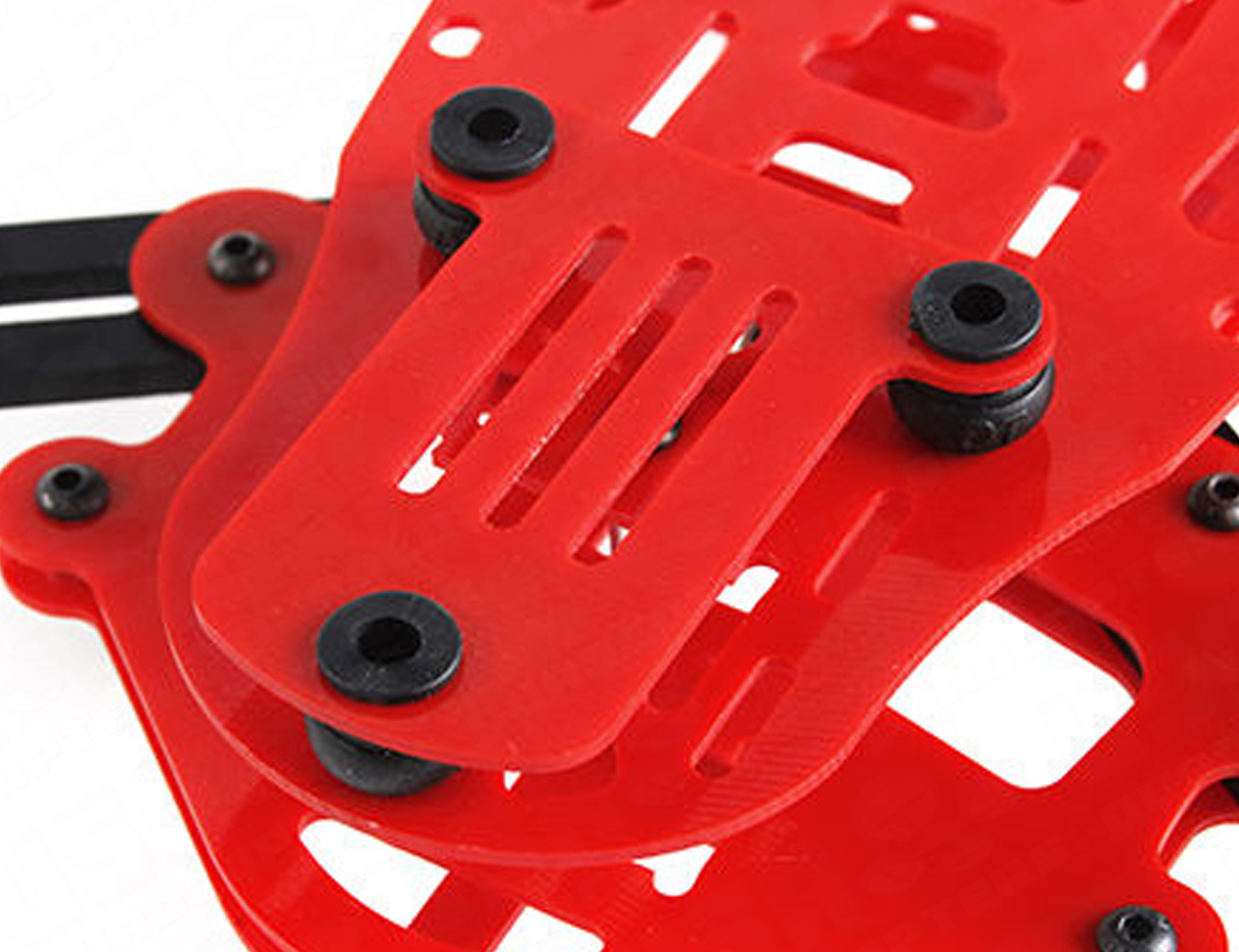

• Vibration isolated front camera mounting
• Ample equipment mounting options
• Unique looks and style
• Support and recognition from the open source community

Specs:
Wheelbase: 360mm
Folded Size: 328 x 132mm
Layout: Quad
Front camera mount: GoPro or similar action cam
Weight: 240g

Required:
Motors: 2209~2216 size
ESC: 10~ 20A
Propellers: 6 ~ 8 inches
Flight controller: 30-45mm mounting distance
Battery: 3~4s 1800-3000mah
5ch Radio
FPV and Video optional
