USAQuadcopters Mini CRL 190mm Full Carbon Fiber Racing Drone Frame Kit

The USAQ Micro CRL fulfills the demanding needs of today's multirotors with an extremely high strength to weight ratio. At only 40 grams, you cut significant weight from your craft without sacrificing strength, rigidity or performance. Crafted with full carbon-fiber composite and aluminum standoffs, the USAQ CRL stands up to the abuse any top-quality frame should, at only 60% of the weight.

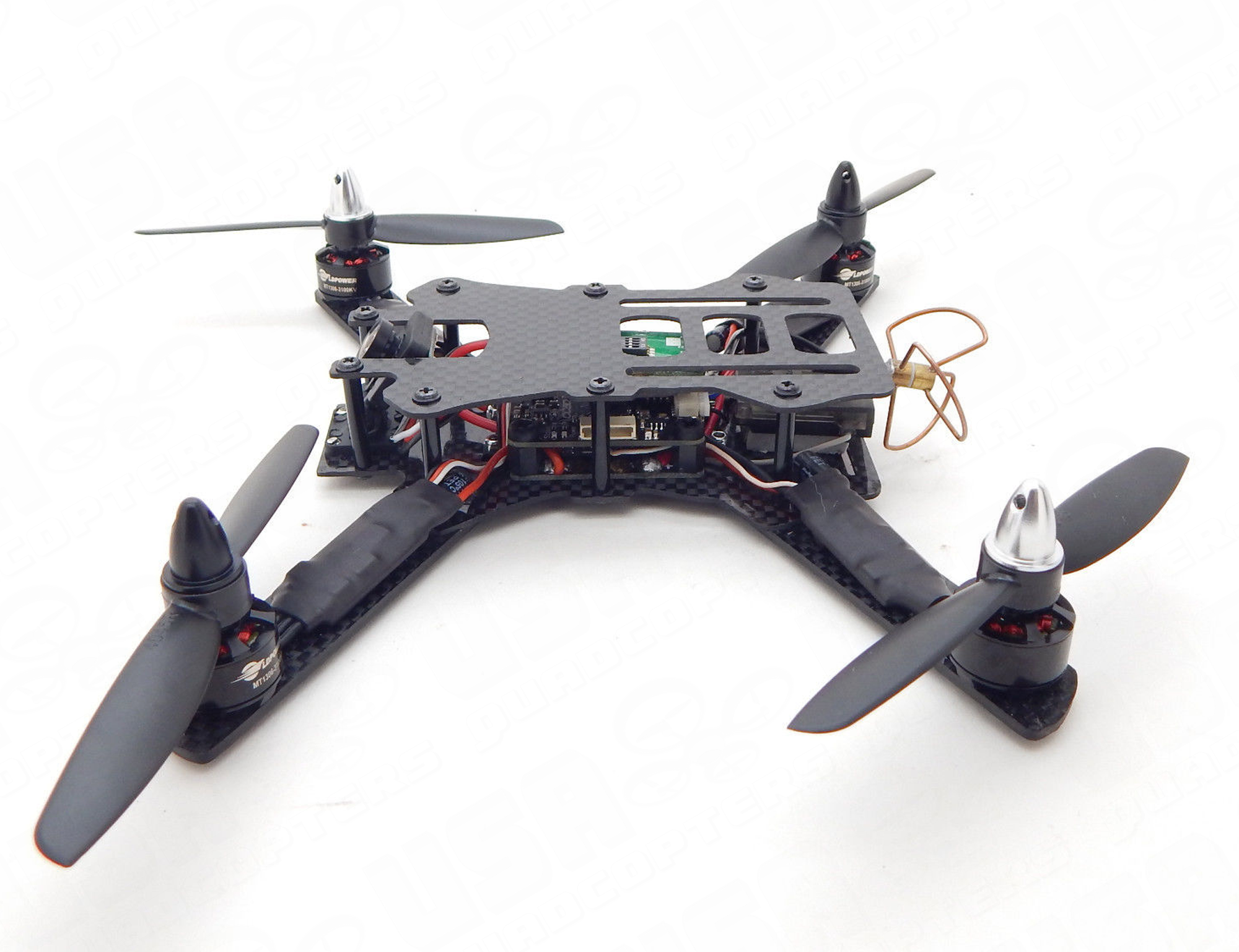

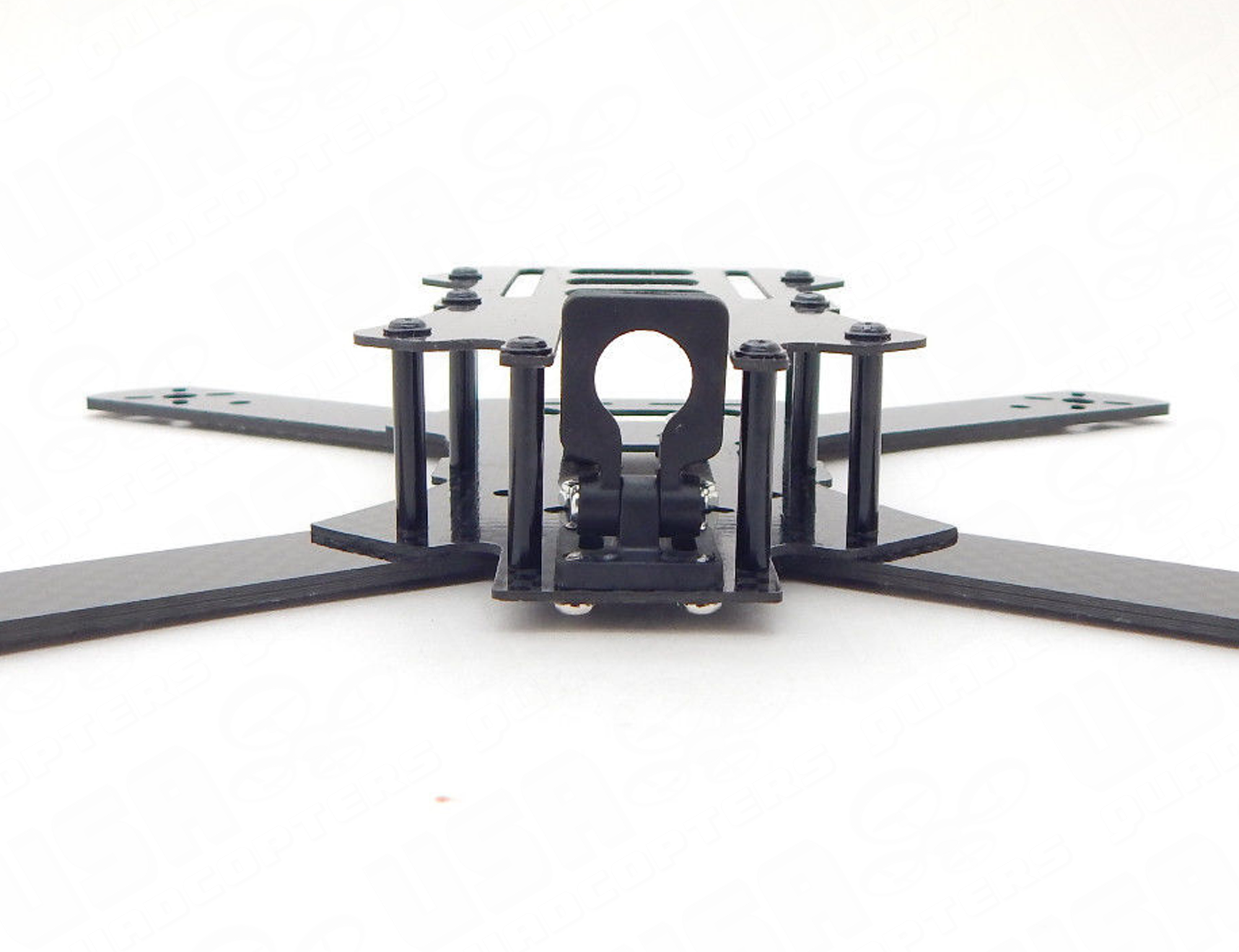

Regardless of your experience in the hobby, you will find the USAQ CRL a joy to assemble and mount essential hardware. Shown with a full-size CC3D, the full-size mounting base on the USAQ CRL opens up a huge range of possibilities in your preference of flight controller. An adjustable micro camera mount is included and provides a perfect 130-degree view.

If you're looking for a frame for your next micro quadcopter, you won't be disappointed with the new USAQ CRL!

Replacement parts are available now and for all-time on our website.

Specifications:

Material: 100% Carbon Fiber Composite
Arm Thickness: 2mm
Body Plate Thickness: 1mm
Weight: 49 grams
Size: 190mm
Middle Frame Height: 20mm
Camera Mount Diameter: 9mm
Hardware Mount Dimensions (Flight Controller): 30mm x 30mm

Recommended Parts List (as shown):

*Multiple ESC/motor/propeller combinations can be used with this size frame. Up to 4-inch propellers can be used.

Motor: MT-1306 3100kv or similar brushless motors
Speed Controller: 6a ESC (up to 12a ESC can be used) We recommend Spyder 12A Opto ESC for full-potential builds.
Flight Controller: CC3D, CC3D Atom, KK2 Mini, Naze32, etc.
Camera: 600TVL Micro Camera
Video Transmitter: Turnigy VTX250-LTE
Receiver: DSM/DSM2 Spektrum, OrangeRx, or LemonRC Satellite
Battery: 800-1200mah 2s 7.4v LiPoly Battery (high discharge rate 45c+ is recommended)
Propeller: 4x4.5 4045 2-blade or 3-blade propeller
