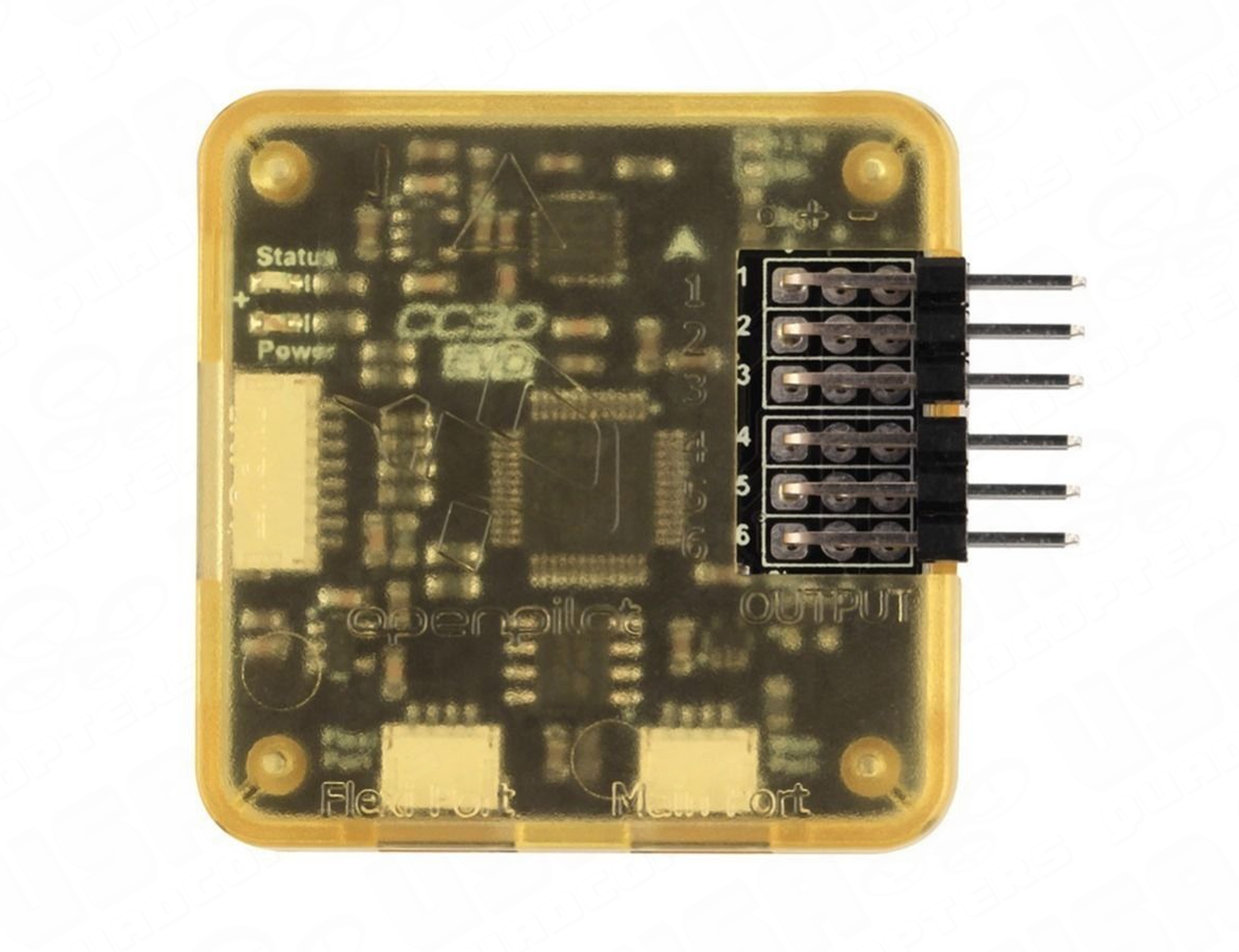

The
CC3D board is an all-in-one stabilization hardware flight controller,
which runs the OpenPilot firmware. It can fly any airframe from fixed
wing to an octocopter and is configured and monitored using the powerful
and user friendly OpenPilot Ground Control Station (GCS) software.
The CC3D is an update to the original Copter
Control board, now using the powerful single chip IMU. The board shares a
lot with the Revolution platform, including the powerful OpenPilot
architecture and the cross-platform Ground Control Station (GCS). The
CopterControl platform has been designed from the ground up to perform a
host of functions from auto-level, multi-copter, Fixed wing UAV’s and
even Flybarless Helicopter support. The new included Flexiport provides
either I2C connectivity or a second serial port.
Features:
• MultiRotor controller with auto-level, including TriCopters, QuadCopters and HexaCopters
• Flybarless Helicopter controller with auto-level
• Fixed Wing UAV controller
• Powerful STM32 32-bit microcontroller running at 90MIPs with 128KB Flash and 20KB RAM
• 3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer
• Tiny 36mmx36mm 4 layer PCB for superior electrical noise reduction and flight performance.
• Software support for Windows, Mac and Linux
• Direct high speed USB support with no drivers required, a truly plug and play device.
• Spektrum satellite receiver support
• Futaba S-BUS hardware support and PPM
• Innovative Flexi-port technology for superior port flexibility
• 4Mbits on-board EEPROM for configuration storage
Specs:
Size: 36x36mm
Weight: 5.7g
Mounting: M3 holes @ 30.5mm square
Included:

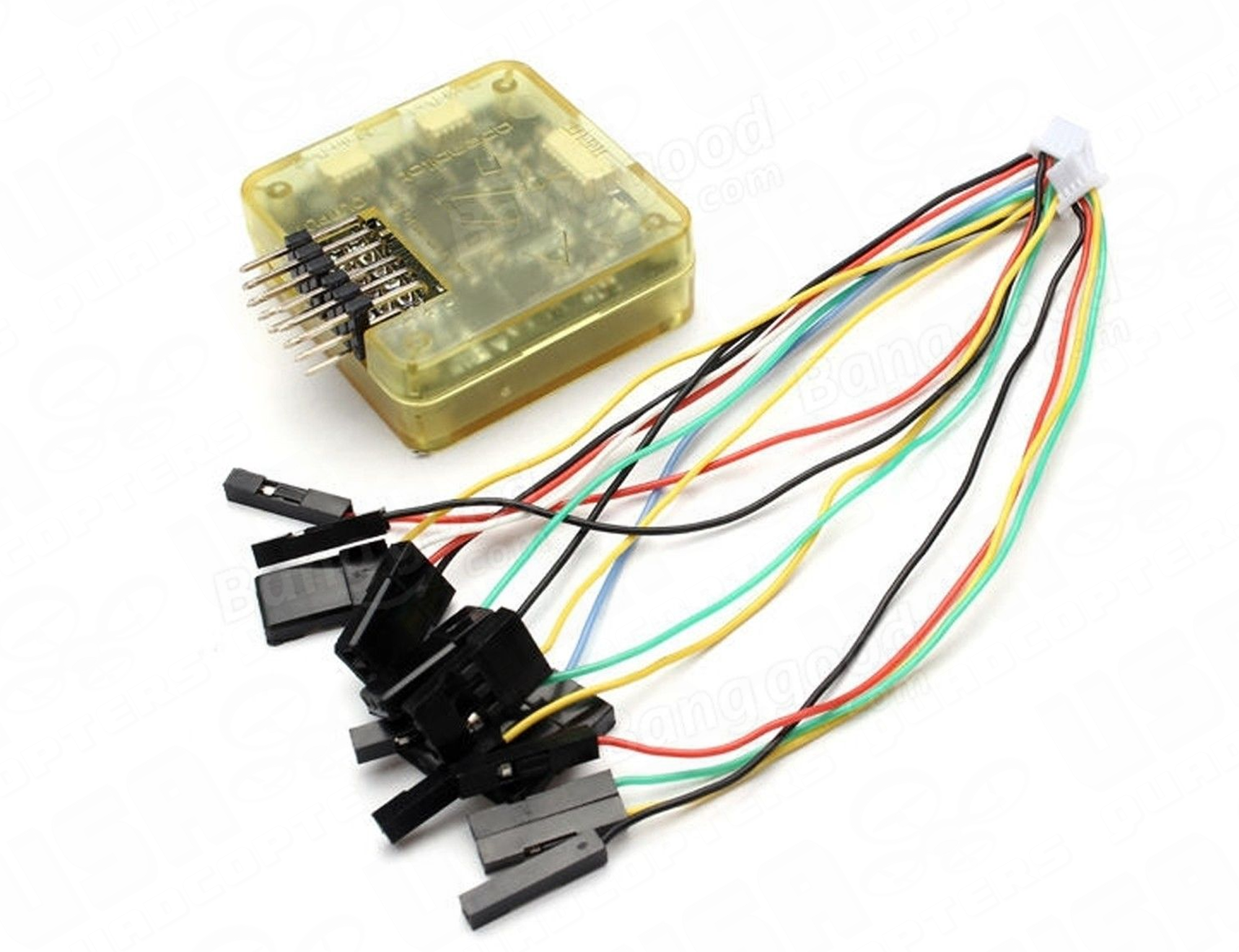

CC3D Flight controller Rev C
OpenPilot software is designed to be used by
everybody! All major operating systems are supported and install
packages are provided. The software is all Free software under the GPLv3
license and not only are you welcome to hack it, but we encourage it! www.Openpilot.org
NOTE: Color may vary, some PCBs will be delivered in a black finish. |
