FPV Ground Station with RSSI Diversity Summing, Low Voltage Alarm, Mount and Cables

This Quanum power supply unit is a must for any FPV ground station and will turn most standard FPV monitors into a diversity receiver system with the addition of two common FPV receivers . Utilizing 4S Lipoly battery packs (up to 5200mAh) it can deliver 5V and 12V power outputs simultaneously and the USB port can even be used to charge up your tablet or smartphone.

This is a quality product that will allow easy set up and connection of power to your FPV receivers and monitor and can be mounted on top of any standard tripod.

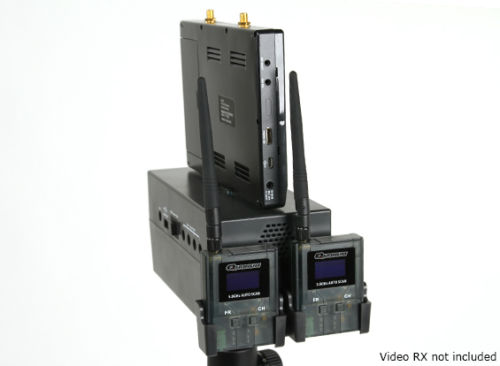

There are two attachment points for receivers and it comes with a tablet/monitor mounting frame. Diversity reception and display can be achieved when using an RSSI compatible receiver by connecting two of these receivers to the RSSI ports on the PSU which will then carryout the diversity function. (receivers are not included).

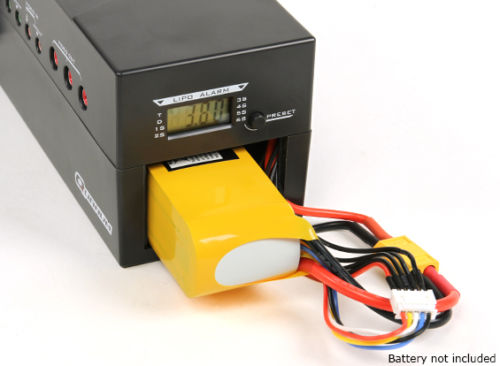

With reverse polarity protection, there are also two RSSI ports, two video-in ports and three video-out ports. A low voltage Lipo alarm system ensures that you will not be caught out with a flat battery and the LCD screen allows both programming of voltage alarm range as well as displaying individual cell voltage.

Features:
• Provides 5V and 12V output
• Diversity summing when using two standard receivers
• Holders/attachment points for Quanum FPV receivers

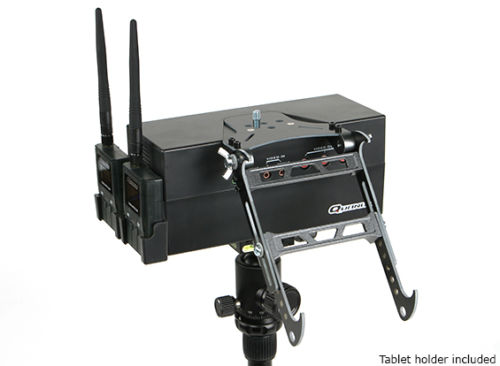

• Tablet mounting frame suits most tablets
• XT-60 battery connector
• Ultra loud Lipo low voltage alarm
• Reverse polarity protection

Specs:
Ports available: RSSI, Video-In, Video-Out
Power Output: 5V and 12V
Power Input: 4S Lipoly
Recommended Battery: 4S Lipoly 5200mAh
Dimensions: 200 x 90 x 82mm
Weight of Unit: 466g

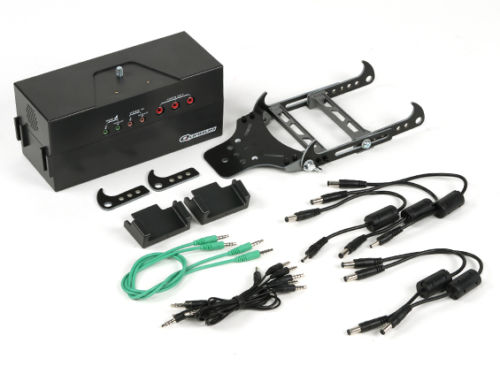

Includes:
1 x Power Supply Unit
1 x Tablet mounting frame
2 x Quanum FPV Receiver holders
Leads and cables
Instruction Manual
