1-2km FPV Component Kit with 7" All-In-One Monitor, 700TVL Camera, 600mW 5.8G Transmitter, and more!
This kit contains all the parts necessary to turn your multirotor into a spying FPV flying machine! The easy to use kit can be configured by an amateur and features high-quality components that will yield excellent range and clarity. Wiring is simple, and instructions are included at the bottom of this page. Wiring and setup can be completed with just a few minutes.Package Includes:

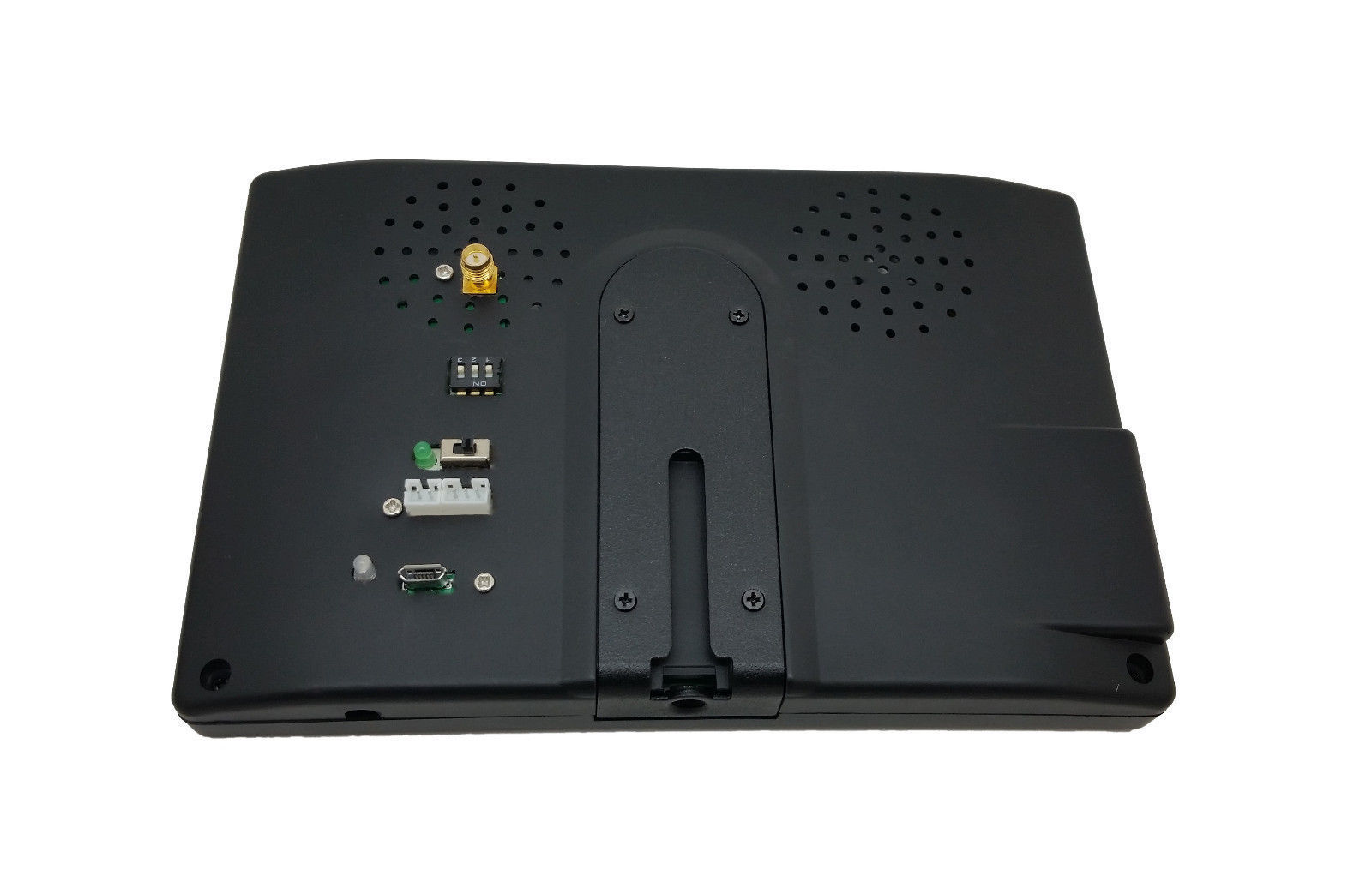

1x 7" HD Monitor with built-in 5.8Ghz receiver and battery
1x Boscam 600mw 5.8Ghz transmitter
1x Sony 700TVL CCTV camera
1x Set 5.8Ghz clover antenna
1x Right-angle antenna connector

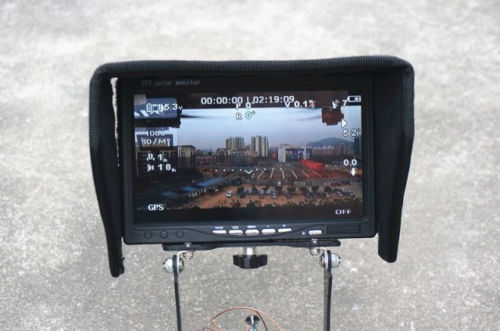

1x Monitor shade
1x Monitor mount for flat surfaces
1x Screen bracket for mounting the monitor to your controller
Specifications:
Boscam 7" Monitor with Built-In 5.8Ghz Video Receiver and
Battery
Screen Resolution: 800 x 480
Screen Size: 150mm x
90mm
Battery Capacity: 4960mah
Receiver Channels: (See
Below)
Weight (Monitor): 288g
Battery Life: 2 hours
Antenna
Connector: SMA Female
Antenna Gain: 5.61dbi
Channels: CH1: 5705, CH2: 5685, CH3: 5665, CH4: 5645, CH5: 5885,
CH6: 5905, CH7: 5925, CH8: 5945.
Boscam 5.8Ghz 600mw Video Transmitter
Power input: 7.4-16V (3S Lipo / ~12v suggested)
Outputs 12v (matches input
voltage)
Transmitting power: 600mA
Antenna gain: 2db
Working current: 220mA at 12V
Video bandwidth: 8M
Audio bandwidth : 6.5M
No auido input on Tx (will not
work with antenna trackers)
Weight: 22g
Dimension: 54x 32x 10mm (excluding
antenna)
Video format supported: NTSC/PAL
Antenna connection: SMA (not RP-SMA)
Frequency and channel frequency table:
Compatible with Fatshark, ImmersionRC Boscam, Foxtech and
other generic branded FPV receivers within the same frequency range.
Sony 700TVL CCTV FPV Camera
Item name :700TVL 2.8mm Lens
CCD FPV Camera
Resolution: 700TVL
Lens: 2.8mm
FOV:90
degree
Pixel: PAL: 1020H×596V (61MP) NTSC: 1020H×508V
(52MP)
Effective Pixel: PAL: 976H×582V (57MP) NTSC: 976H×494V
(48MP)
Format : PAL/NTSC
DNR:2DNR, support
0-15 class adjustable
Minimun illuminance: 0.01LUX/F1.2DNR:
≥48dB
Video ouput: 1.0Vp-p/75Ω
AGC: 0.25/0.50/0.75/1.00
adjustable, max 55db
White balance: On/Off
Explosure: Electric
explosure
Electric shutter1/50(1/60) - 1/100000 seconds
Working
voltage: DC12V
Size: 26mm*26mm
Weight:10g

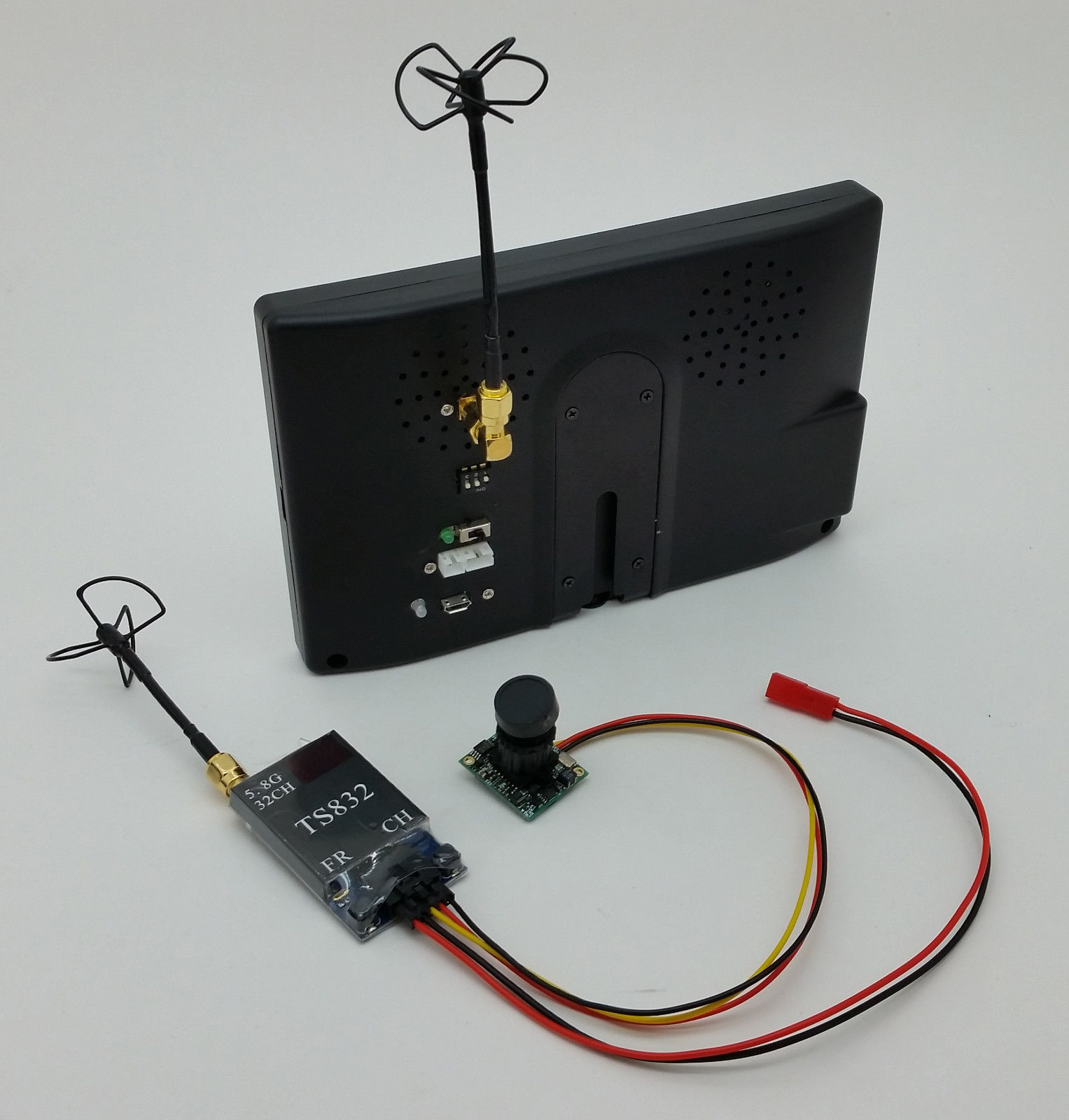

Instructions for assembly:
- Start charging monitor using 5v power source and micro-usb connector (not included)
- Install and firmly screw on clover antennas and right-angle connector. 3-blade is for the TS832 transmitter and 4-blade is for the monitor.
- Cut and solder the yellow, red, and black wires in the camera harness to the yellow, black, and red leads on the TS832 transmitter
- Connect power from the vehicle battery to the transmitter (requires 12 volts)
- Turn on monitor and select proper channel
