How Small Can you Go!

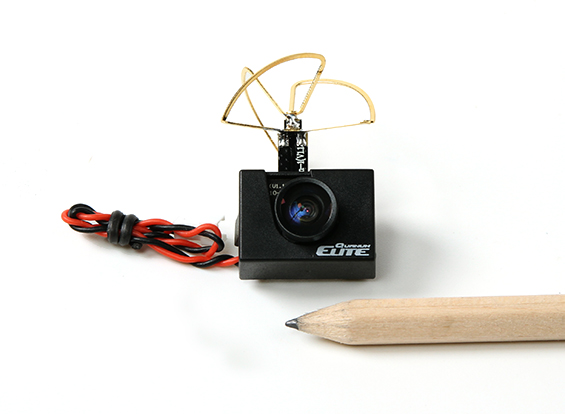

This Quanum ELITE TX CAMERA COMBO Micro Cam VTX extremely small and
could be installed on almost anything. It’s lightweight would hardly
effect any planes CofG. Most multi-rotors wouldn’t even notice it was
there.
It’s easy to install and operate with one push button to change

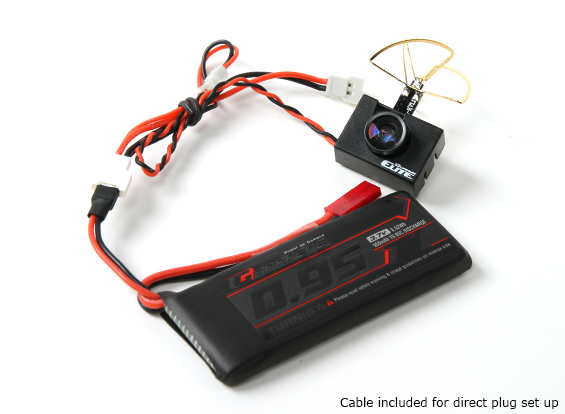

channels and bands. What could be simpler. Just plug into a little 1S Lipoly battery or onto your 5V rail and you are ready to go.
Excellent video and latency for such a small package at a fraction of the cost of it's nearest rivals.
Features:
• Micro sized and lightweight (4.5g)
• 40CH VTX
• Easy install, plug and play
• Push button control instead of switch to change channels
• Powered by 1S 3.5V LiPoly battery
Specs:
Transmitter power: 25mW
Input power: 2.5~5V
Camera resolution: 600TVL
Min illumination: 1 lux
Field of view: 120deg viewing angle
Antenna dimensions: 20 x 25mm diameter
Antenna: 3 lobe right hand circular polarized
Video output: NTSC
Frequency: 5.8GHz 5 bands 40 channels
Raceband: 5658-5917
Size: 21x19x17mm (excluding antenna)
Weight: 4.5g
Channels:
Band F: 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880
Band E: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
Band A: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
Band R: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917
Band B: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866 |
