Eachine CMOS 700TVL FPV Camera with 200mw 5.8Ghz Video Transmitter Combo
This
Eachine 700TVL 1/3 Cmos FPV 110 Degree Camera supports free switching
between NTSC and PAL. In other words, you will receive the same camera
no matter which system you order.
And please note that you need to turn off the electricity before switching or it may ruin the device.
Description:
Brand Name: Eachine
Item NO.:F01
Item Name: 700TVL 110 degree Camera module with transmitter

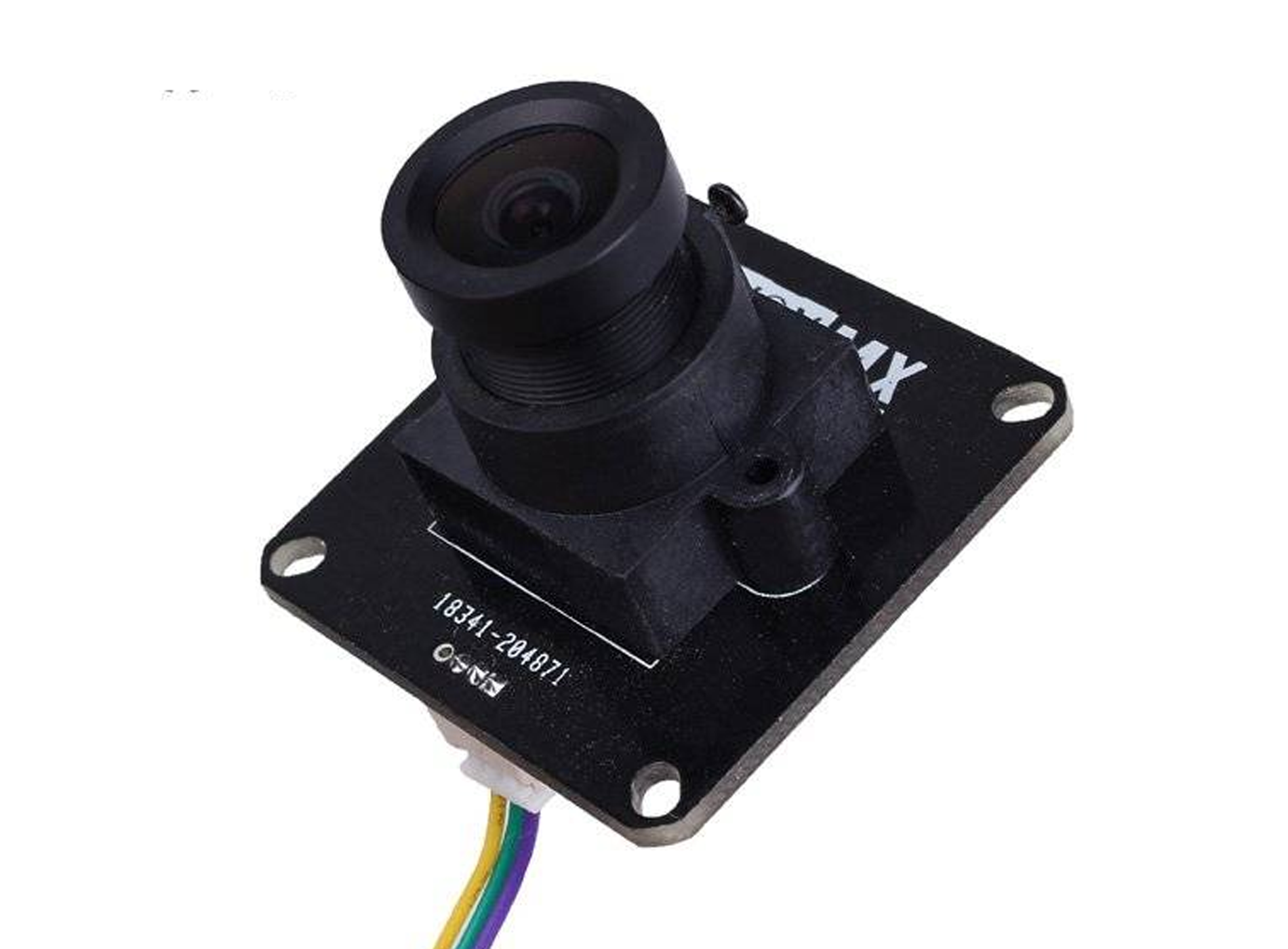

Specification of Camera:
Lens: 2.6mm IR coated
FOV: 127°diagonal 110°horizontal (ideal for fixed camera)
Power Supply: 3.6-5.5V(powered by image transmission)
Type:PAL / NTSC
(free switch)
Current: 60mA@11.1V
Sensor: 1/3” CMOS
Resolution: 700TVL
Operating temperature: -20° C - 70° C
Camera Size: 32 X 32 X 23.5mm
Lens Size(Length x Diameter): 15.3mm X 14mm
Weight: 12g
Usage:Compatible with general 5.8G transmitter

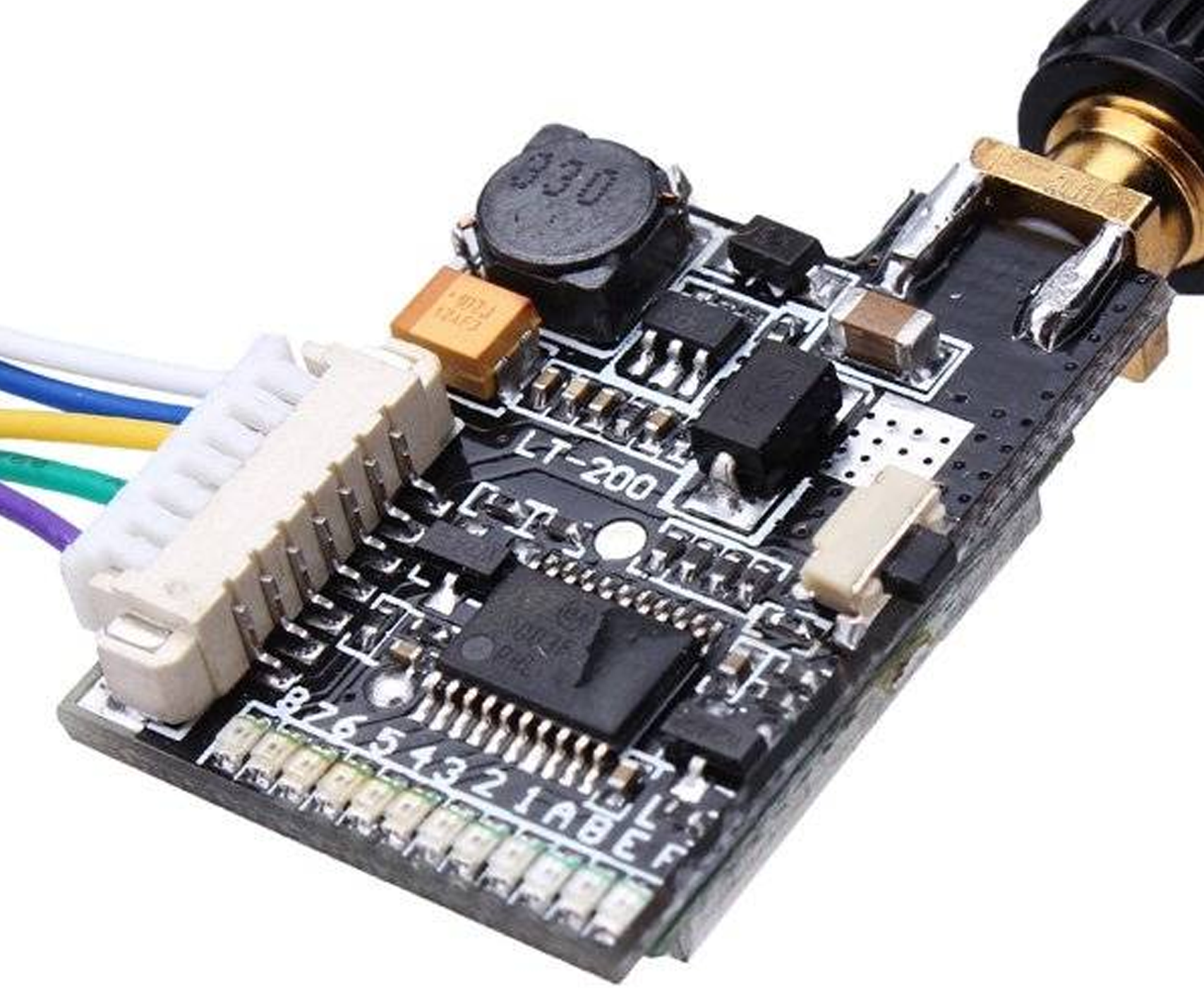

Specification of Image Transmission:
Item NO.: ET200
Modulation Mode: FM
Supported Video Format: NTSC/PAL
Output Impedance: 50 Ohm
Output Signal Strength: 23~24dBm.
Output Power: 200mW
Operating Channel: 32CH
Operating Voltage: 7V - 24V
Operating Current: 190mA
Operating Temperature: -10~85
Video Band Width: 0~8.0 MHz
Video Input Level: 0.8~1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5~2.0 Vp-p
Audio Input Impedance: 10K Ohm
Sound Carrier: 6.5MHz
Transmitter Connector: optional
RP-SMA female (antenna connector: RP-SMA male) and SMA female (antenna connector: SMA male)
Size: 38mm x 22.5mm x 6mm
Weight: 6g(without antenna)
Transmitter frequency: 5645-5945MHz with 200mW power output
Transmitting distance > ~1500m (open area)
Note: This Eachine 700TVL 1/3 Cmos FPV 110 Degree Camera supports 11.1V and the 32CH transmitter supports 7V - 24V. After testing, both of them in 11.1V will be the best if used as a set.
Features:
- With 1/3'' CMOS sensor
- With lens cap,well protecting the lens
- Evening low light performance as excellent as highlight during the day
- Imaging parameters and the wide angle rigorous debugging for FPV
- Special cable connected the camera to image transmission,very convenient and concise
- Super lightweight,ultra-low power consumption,suitable for RC multicopter
- Can be mounted on frame,compatible with most of the 250mm frame
- Image settings have been FPV tuned through hours of flight testing to
ensure great performance in challenging lighting conditions (no problem
to fly in low afternoon sunlight).
- Low power and light weight make this camera a perfect choice for
smaller aircraft. Come with tiny 200mW 32ch FPV professional video
transmitters.
- Compatible with ImmersionRC Boscam, Foxtech and other generic brand FPV receivers within the same frequency range.
Recommended Related Product Sold In Our Store:(Not included)
5.8G 32CH receiver module
5.8G 32CH LCD monitor
250mm frame kit
Package Included:
1x Eachine 700TVL camera
1x 5.8G image transmission
1x Antenna(2db)
1x 5P Cable
1x Manual
