Aomway

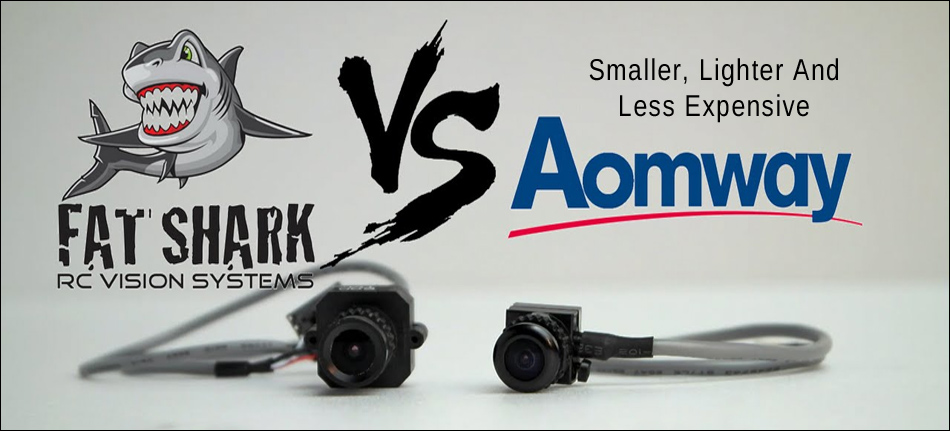

new Mini 600 TV lines camera with built in microphone is the perfect
plug and play Camera for Mini’s to large models looking for a small but
yet quality camera made for FPV applications.
The camera has a shielded A/V cable and
standardized 5 pin connector that is plug and play with most video
transmitters. The CMOS FPV tuned sensor is great in all light conditions and even comes with a lens adapter if you want to change the FOV.
Features:
Fatshark and Aomway direct matched
plug (5V)
Built in microphone
Shielded A/V cable
600TVL
resolution
Mini Sized at just 15x15x23mm
Specs:
Image sensor: CMOS
Lens: 2.8mm
TV
system : Pal
Horizontal resolution: 600TVL
Elements:Pal:500*582(V)
S/N Ratio:>=45d
Usable illumination:
0.5Lux
Scanning system : NTSC:575lines, 60Field/S Pal:
625Lines, 50Fied/S
Net Weight:13g
Cable length: 25cm
Size :
15mm*15mm*5mm
Connector: JST: suit for AOMWAY 5.8G 200MW
mini Transmitter Dupont: suit for the AOMWAY 5.8G 1w, 500mw
transmitter, Fatshark transmitter, Immersion transmitter. Not
for the Boscam transmitter (12v VS 5v)
*Note this is a 5V camera, please verify voltage as some video TX
output 12v for the camera via the 5 pin connector.
