1KM Boscam TS351 200mw 5.8ghz Audio Video Transmitter with Cables 12v

A powerful transmitter in a small package!

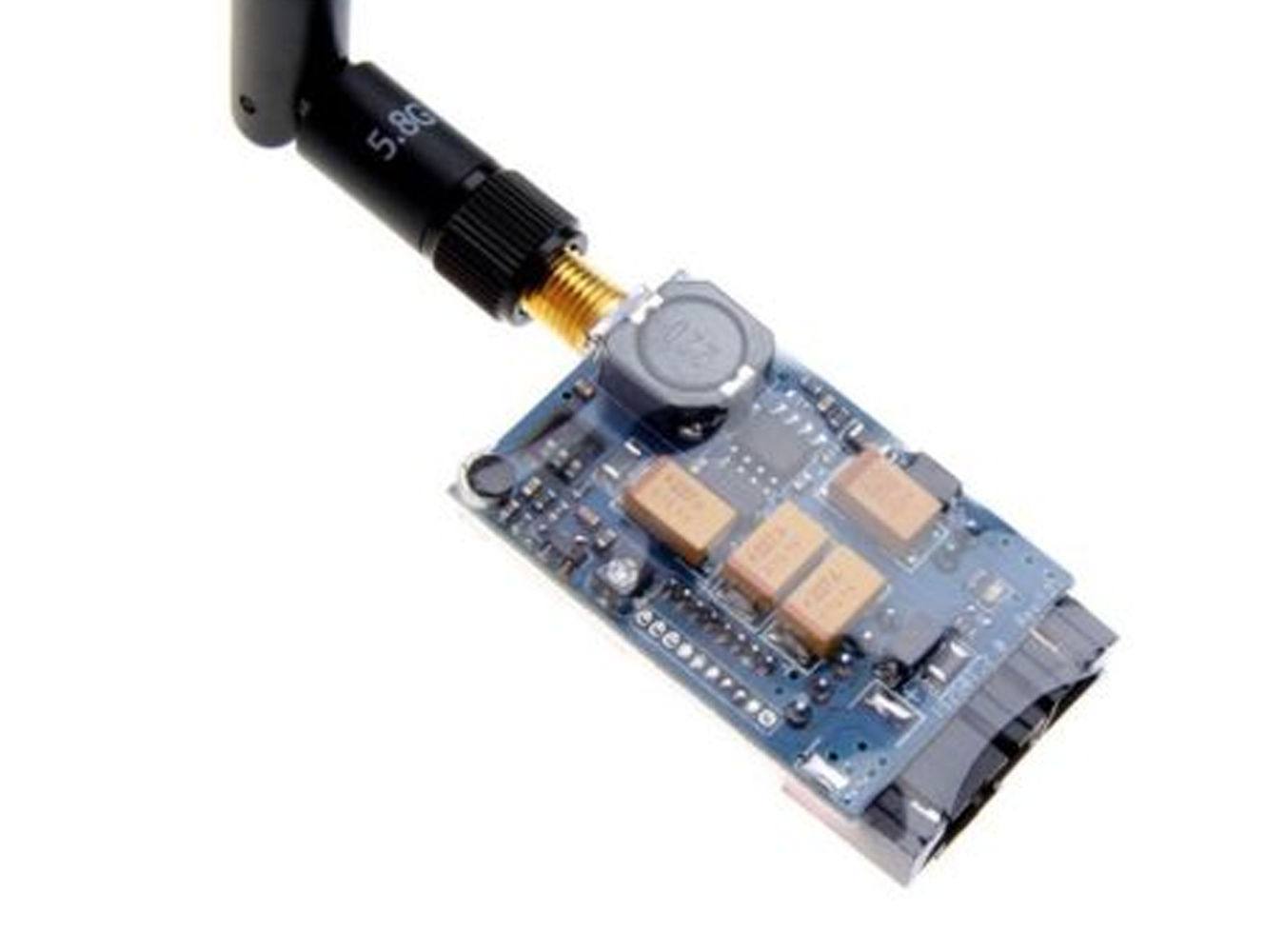

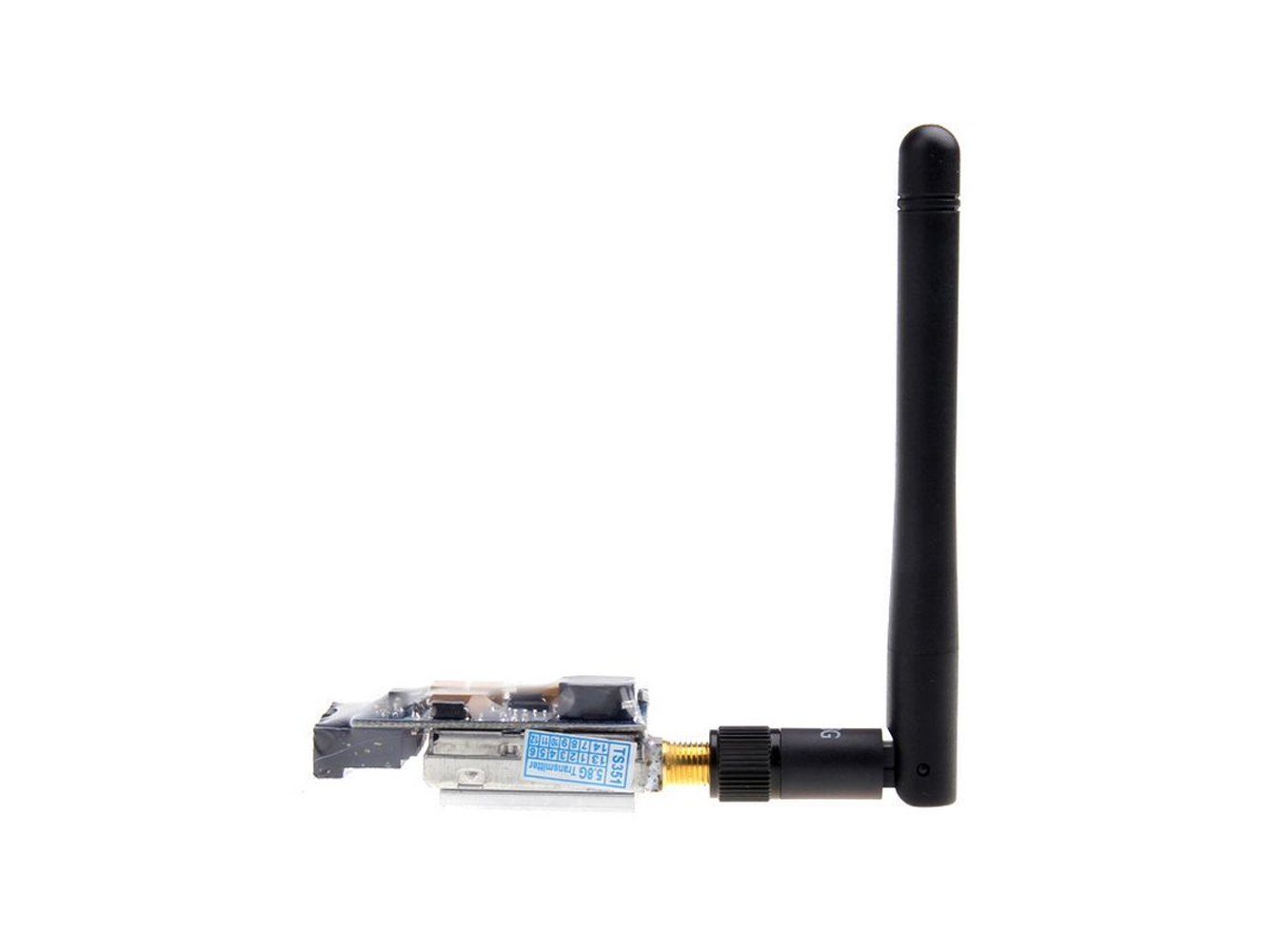

The Boscam TS351 system is a reliable, consistent and small (not micro) transmitter package. The transmitter puts out a true 200mw signal strength. A larger-than-normal heat-sink prevents loss-of-strength associated with a hot video transmitter.

Please check the channels on your video receiver with the frequencies below.

As always, if you have any questions about this product, please message us.

Specifications:
Item name: TS351 transmitter
Transmitter frequency: 5645-5945MHz; 8CH
Frequency control: Built-in frequency and phase lock loop
ANT connector: SMA (inside the needle)
Video output: 1Vp-p 75ohm
Audio output: 1Vp-p 600ohm
Power supply: DC 12V
Video: PAL/NTSC
Small size SMD package: 55 * 26 * 17mm
Built-in microphone audio pick up device.
Built-in high-frequency PLL stability.
8 channel selectable.
Low harmonic radiation.
Direct input analog audio and video signals.
Package size: 13.5 * 6.5 * 2cm / 5.3 * 2.6 * 0.8in
Package weight: 49g / 1.7oz

Working Frequency:
CH1: 5705 CH2: 5685
CH3: 5665 CH4: 5645
CH5: 5885 CH6: 5905
CH7: 5925 CH8: 5945

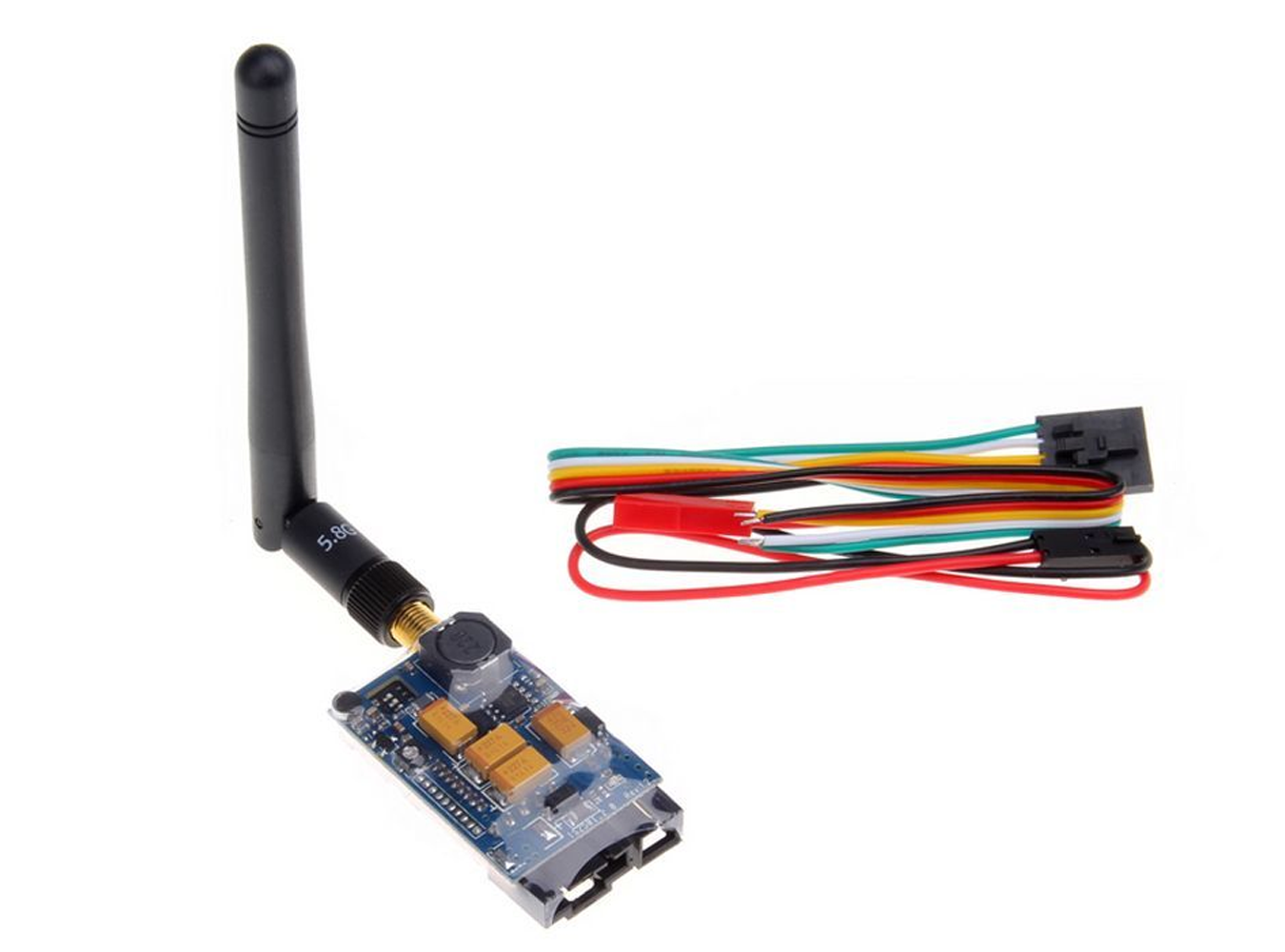

Package List:
1 * Boscam TS351 Transmitter
1 * Antenna
1 * Power in Harness
1 * Power Out Video Out Audio Out Harness
